Skoda Yeti CBZ sincronia giri e fase

peppino mibtel

By peppino mibtel
in Signal Analysis

 Share

Recommended Posts

  • Moderator
peppino mibtel Grand Master

peppino mibtel

Posted
  • Moderator
Posted

Saluti a tutti, Skoda Yeti

1197 cc 77 kw CBZ

km 122042

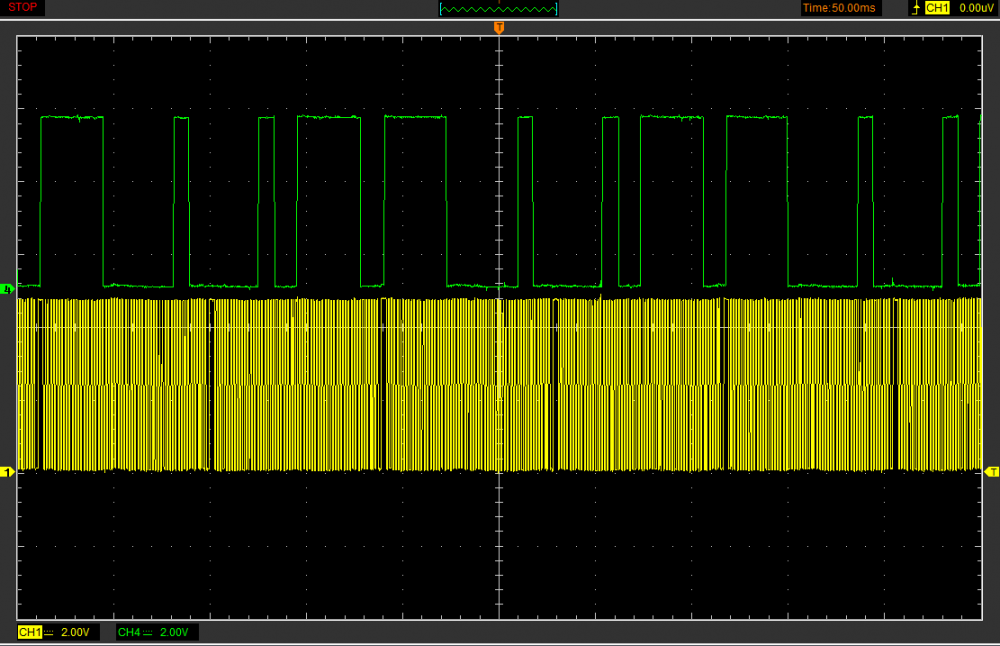

ch1 giri ch4 fase



motore al minimo no variatori non presenti





sensore giri posteriore basamento lato volano accessibilissimo

sensore fase sopra coperchio camme accessibilissimo

entrambi segnale al pin centrale






  • Thanks 2
